PowerApps: Create Reusable Multi-Level Navigation Component Menu

VERTICAL NAVIGATION MENU COMPONENT

How to create a reusable multi-level vertical navigation menu component within the PowerApps Canvas App with only a gallery and a button.

---

Primary Steps

Once you have created a Canvas App, add the following code inside the App.OnStart:

// Create a table to store the navigation menu values
ClearCollect(
    colMenuItems,
    Table(
        {
            ID: 1,
            MenuID: 1,
            Value: "Home",
            Screen: Home,
            Visible: true,
            Selected: true
        },
        {
            ID: 2,
            MenuID: 1,
            Value: "Contacts",
            Screen: Contacts,
            Visible: true,
            Selected: false
        },
        {
            ID: 3,
            MenuID: 1,
            Value: "Drinks",
            Screen: Drinks,
            Visible: true,
            Selected: false
        },
        {
            ID: 4,
            MenuID: 2,
            Value: "Contact Details",
            Screen: ContactDetailsHome,
            Visible: true,
            Selected: false
        },
        {
            ID: 5,
            MenuID: 2,
            Value: "Hobbies",
            Screen: ContactDetailsHome,
            Visible: true,
            Selected: false
        },
        {
            ID: 6,
            MenuID: 2,
            Value: "Favourite Drinks",
            Screen: ContactDetailsHome,
            Visible: true,
            Selected: false
        },
        {
            ID: 7,
            MenuID: 3,
            Value: "Drinks Edit",
            Screen: DrinksEdit,
            Visible: true,
            Selected: false
        }
    )
);

// Set the default selected menu item
Set(_varSelectedMenuItem, Index(colMenuItems, 1).Value);

This will allow the app to recognise what screen is active and what screen to navigate to when selecting a menu item.

NOTE: If there is a navigation item you wish to hide, simply change the Visible value to false.

---

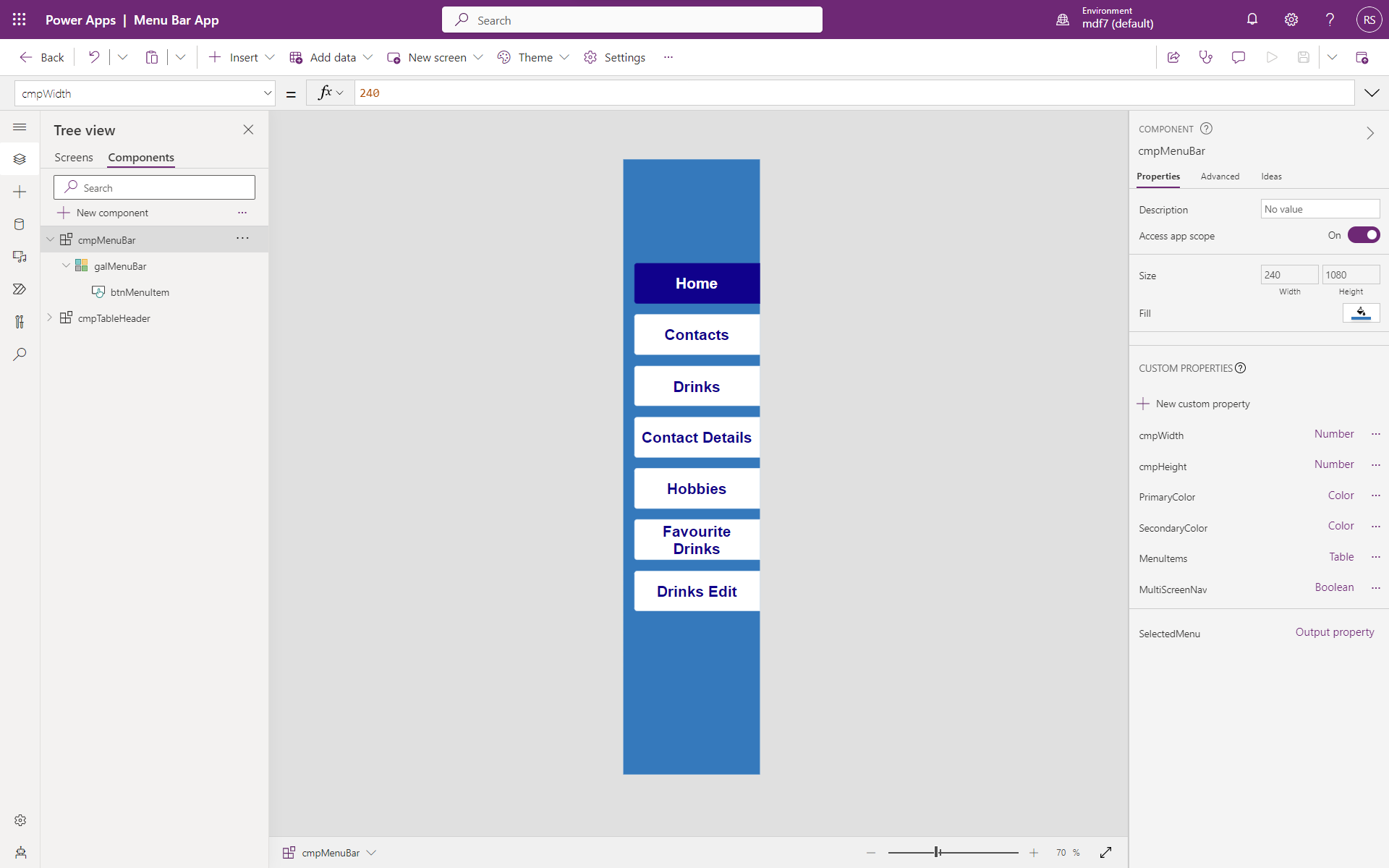

Component

In the components section, add a new component.

Component Properties

Set the “Access App Scope“ toggle to On.

Give the component a background colour. (Optional)

---

Custom Properties

Add the following custom properties to the newly created component:

Name	Type	Data Type	Value
cmpWidth	Input	Number	264
cmpHeight	Input	Number	App.Height
PrimaryColor	Input	Color	enter a desired colour
SecondaryColor	Input	Color	enter a desired colour
MenuItems	Input	Table	Sort(Filter(colMenuBar, Visible), "ID", Ascending)
MultiScreenNav	Input	Boolean	false
SelectedMenu	Output	Record	First(colSelectedMenu)

The MultiScreenNav will be useful if you want to change the selected menu item without changing screen.

The SelectedMenu will order the navigation menu by ID in ascending order (from top to bottom).

Set the component’s Width property to: cmpMenuBar_Home.cmpWidth

Set the component’s Height property to: cmpMenuBar_Home.cmpHeight

---

Insert Gallery

Go to “Insert“, select “Layout“ and add a blank vertical gallery.

Add the following properties:

Items: cmpMenuBar.MenuItems

Width: Parent.Width

Height: Parent.Height

TemplateSize: 90

TemplatePadding: 0

---

Add Button

Inside the gallery, insert a button with the following properties:

BorderColor: Self.Fill

BorderThickness: 1

Color: If(ThisItem.IsSelected, White, DarkBlue)

DisabledFill: Self.Fill

Fill: If(!ThisItem.IsSelected, White, DarkBlue)

FocusedBorderThickness: Self.BorderThickness

Font: Arial

FontSize: 20

FontWeight: Semibold

Height: 70

HoverBorderColor: Self.BorderColor

HoverColor: Self.Color

HoverFill: Self.Fill

PressedBorderColor: Self.BorderColor

PressedColor: Self.Fill

PressedFill: Self.Color

RadiusBottomLeft: 5

RadiusBottomRight: 0

RadiusTopLeft: 5

RadiusTopRight: 0

Text: ThisItem.Value

Width: Parent.TemplateWidth - Self.X

X: 18

Y: (Parent.TemplateHeight - Self.Height)/2

---

For the Button.OnSelect, insert the following code:

ClearCollect(colSelectedMenu,ThisItem);
UpdateIf(
    colMenuItems,
    Value = First(colSelectedMenu).Value,
    {Selected: true},
    Value <> First(colSelectedMenu).Value,
    {Selected: false}
);
If(
    cmpMenuBar.MultiScreenNav,
    Navigate(First(colSelectedMenu).Screen)
)

And that’s all for the component itself.

Screens

Now let’s head back to the Screens view.

Insert the component to the screens which need a navigation bar.

For the single-screen navigation menus, insert a toggle with the following properties:

OnCheck:

Set(_varSelectedMenuItem, First(colSelectedMenu).Value);
Clear(colSelectedMenu)

Default:

!IsEmpty(colSelectedMenu)

For each navigation menu component added to the screens, insert the following code to the MenuItems custom property:

SortByColumns(
    Filter(
        colMenuItems,
        // replace the MenuID with the designated id
        MenuID=1
    ),
    "ID",
    Ascending
)

For every navigating action, enter the following code in the OnSelect property:

NOTE: Wherever you use the Navigate() function, the code below should be inserted before.

// ID=2 is the menu item ID to navigate to
Set(_varSelectedMenuItem, LookUp(colMenuItems, ID=2).Value);

UpdateIf(
    colMenuItems,
    // replace MenuID=1 with the appropriate MenuID
    MenuID=1,
    {
        Selected: Value=_varSelectedMenuItem,
        Visible: true
    },
    // replace MenuID=1 with the appropriate MenuID
    MenuID<>1,
    {
        Selected: Value=_varSelectedMenuItem,
        Visible: true
    }
);

// replace with the appropriate screen
Navigate(Contacts)

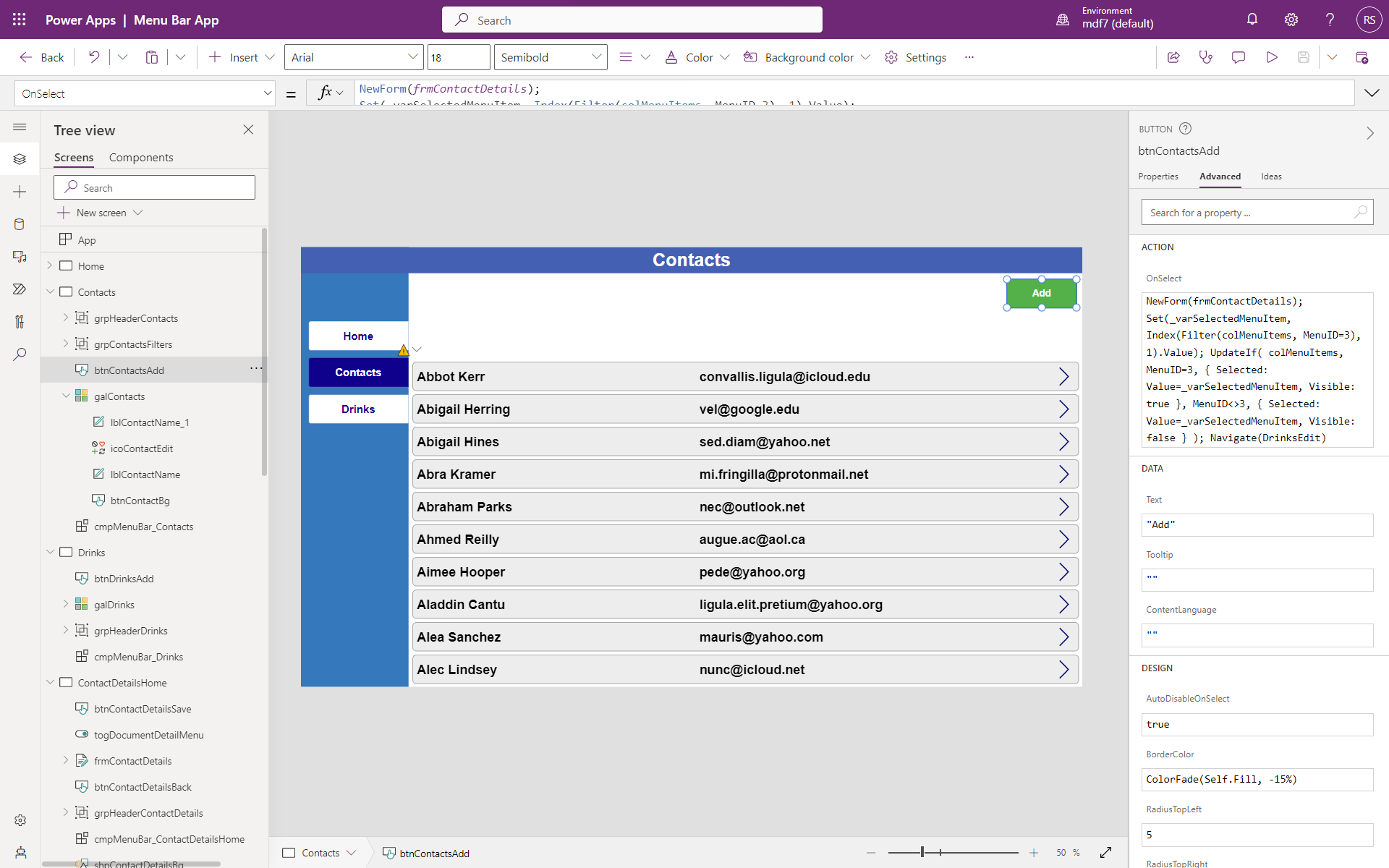

As you can see in the image below, this is the end result from the Contacts screen. I added a random contacts gallery and an Add button for demonstration purposes.

Examples of where I inserted the code above:

• on Form.OnSuccess
• Every Back button
• Every Add button

Feel free to customise the component to your needs. There are endless ways you can improve your implementation, for example, by adding an icon next to the navigation button for a more visually and functionally friendly user experience.

I hope you find this useful. For further questions, feel free to contact us via the Contact page on our website!

---
